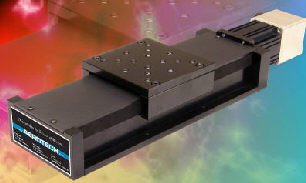

From the contextual menu "Virtual Mechanism - Actuators – Jacks without rod" or from the toolbar, it is possible to load several linear positioners on the work area.

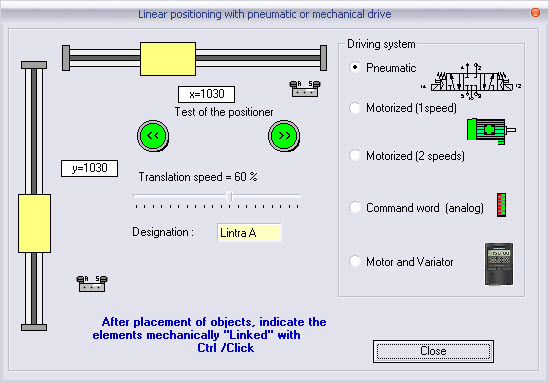

The characteristics are shown in the following window :

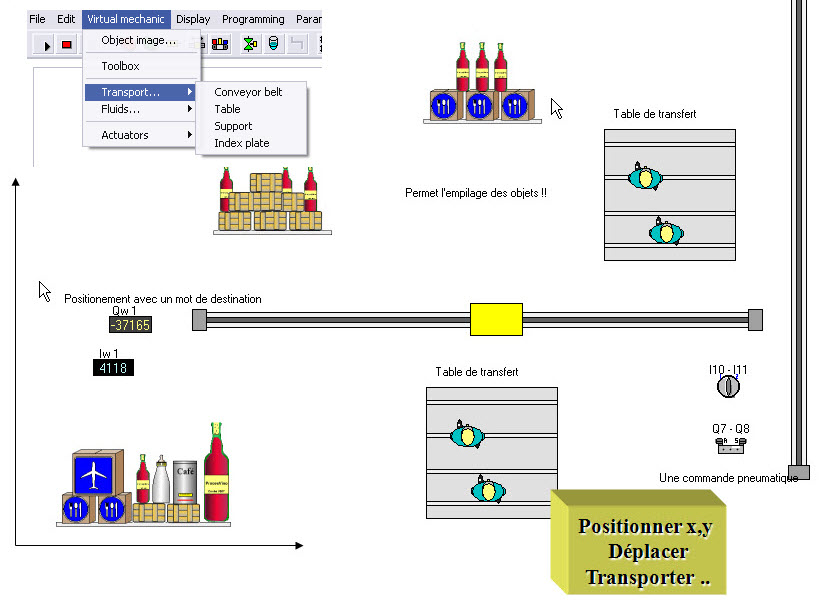

This type of mechanism allows to displace other objects such as images, jacks, supports, tables, conveying belts, detectors.
The types of drive (pneumatic, driven by a motor, servo controlled or controlled by frequency variators) cover the majority of the current industrial applications.
Warning : please use the required safety devices for processes with motorized control features.

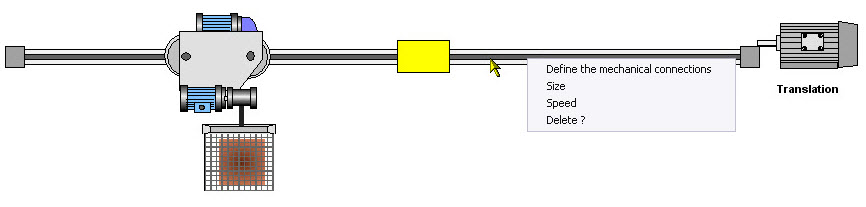

The contextual menu allows to :

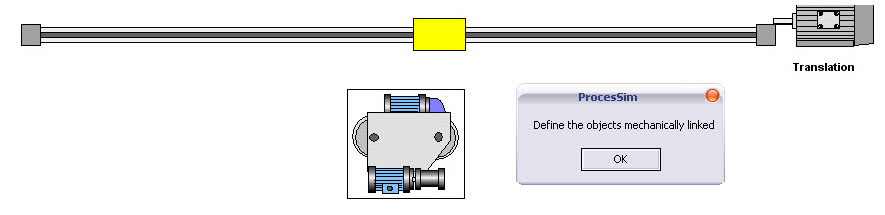

click on the objects to link, these objects will be framed ;
to complete your work, click on the work area and the objects will be automatically linked ;
to deactivate the mechanical link, proceed in the same way by clicking on the framed objects.
The "object" images linked to a positioner come in the foreground and they are no longer pulled by the conveyors or the jacks.
Note :
To ensure a displacement in X, Y, link the object to two positioners.
When the objects are linked, they move with the table as is shown below.

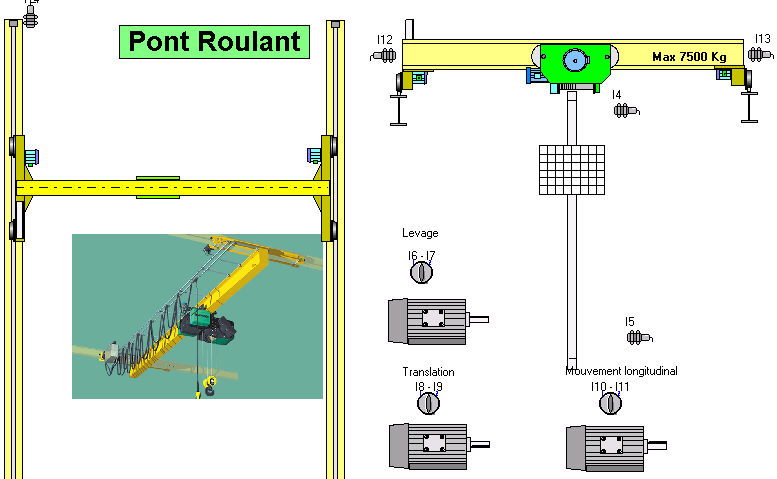

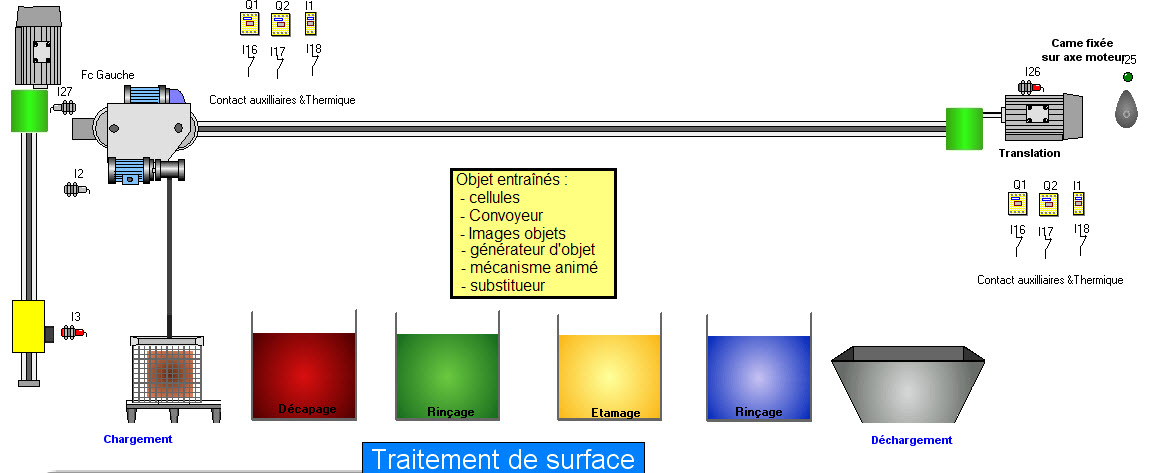

Overhead travelling crane at the beginning of two linear positioners and a conveyor
These tools when linked to positioners allow the displacement of the placed objects.
Modify the translation speed in Run mode

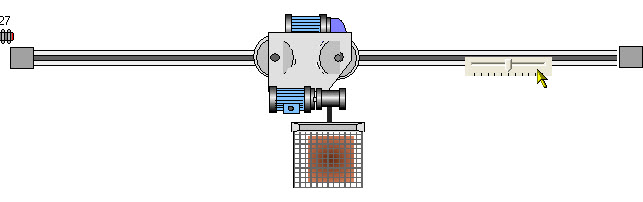

In Run mode, it's possible to modify the translation speed of the positioner by the slider available at mean a right click on the positioner "track".
