1. Dynamic display of the grafcet :
Check the line in connection with this choice.

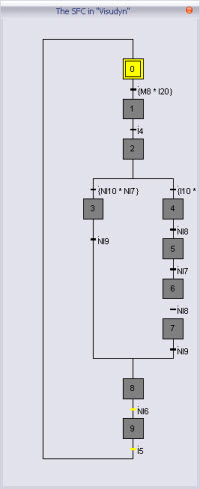

When switching to the Run mode, the following dynamic screen appears.
The active steps and the true receptivities are shown in yellow.

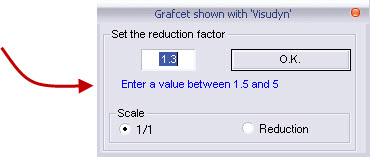

Double click on this window is allows to choose the scale of the layout.

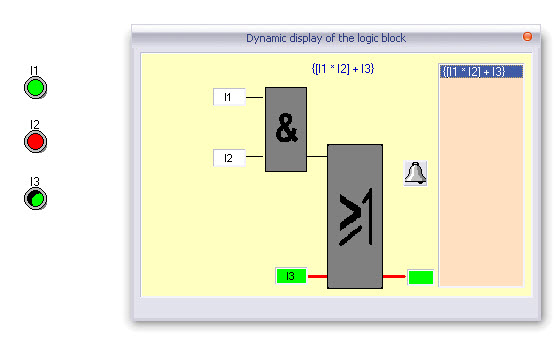

2. Dynamic display of logic blocks :

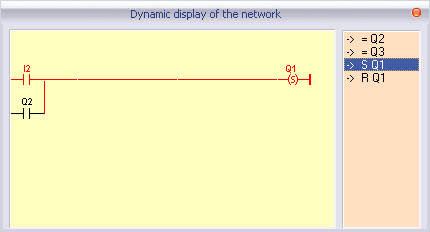

3. Dynamic display of networks :
