Option button
It is imperative that the step of origin is located above the steps of destination of the divergence.

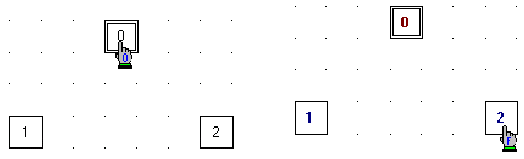

1. Indicate the step "origin" using the pointer representing a hand with the letter O for ‘’origin ".
2. Select the steps of destination with the pointer in the shape of hand with the letter F for "End ".
3. Once that the steps are designated, click on the work area with the left button of the mouse; this will generate a request for confirmation.
4. After confirmation, the divergence is drawn automatically.
Technical note
Notice that the receptivity is correctly positioned and indicating in overlay R0 -1 and R0 -2 and... R 0rigine-X.
The software interprets this divergence as a series using the same condition for the different receptivities.
