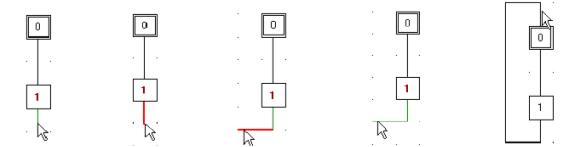

Example: connection step1 to step 0.
1. Indicate the origin step, step1, move the pointer of the mouse to the place where you want to change the orientation and release the button of the mouse.
2. To confirm the first change of orientation, activate the button located at the end of the red segment just drawn, its color switches to green.
3. Move the mouse in the desired direction by maintaining the pressure on the button, the segment is traced in red, to change orientation release the button of the mouse.
4. Repeat the action described in point 3 until the designation of the destination step is made then release the button of the mouse.
Important remarks :
1. If an oriented connection uses the same path that another connection drawn before, it is imperative to carry out the complete layout of the new connection by tracing again on the already drawn line segments.
A connection is effective if it is made according the order :
indicate the step of origin ;
carry out the complete layout up to the end step.
2. For selections of sequence, for resumptions of sequence and jumps of step, provide sufficient extra space and avoid overwriting of texts (Conditions associated with the receptivities and with the boxes representing the actions).
